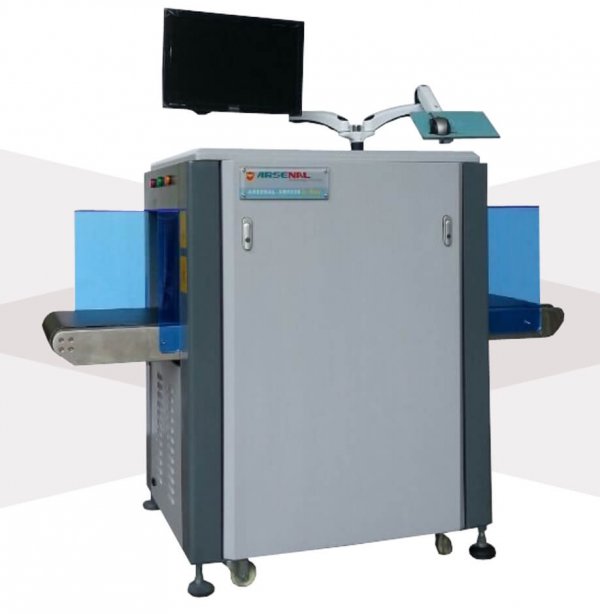

Arsenal-5030A luggage scanner x ray baggage scanning machine
| Model NO: | Arsenal-XR5030 | Application: | Security Check, Industrial | ||
| Alarm Form: | Display Alarm | Conveyor Speed: | 0.22m/S | ||
| Package: | Carton Boxes or According Customer′s Need | Portable: | Non Portable | ||
| Customized: | Non-Customized | Noise: | Less Than 55dB(a) | ||
| Certification: | CE, ISO, FCC RoHS | Type: | Conveying X-ray Detector | ||
| Operating System: | Windowsxp | Nw / Gw: | 290 Kg / 360 Kg | ||
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
- Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
- Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
- Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
- A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
- Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
- Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
| X-ray Generator | |
| Ray Beam direction | Bottom-illuminated |
| Tube current | 0.4~0.5mA(adjustable) |
| Tube voltage | 100-160 kV(adjustable) |
| Ray beam divergence angle | 60° |
| The cooling / work cycle | Sealed oil cooling / 100% |
| Image Processing System | |
| X-ray sensor | L-shaped photodiode array detector (C), 24bit depth |
| Monitor | high resolution 19 inch LCD SamSung monitor |
| Color image display | 24-bit true color display |
| Edge Enhancement | the outline of objects will be more clear |
| Super Image Enhancement | the details of the image are more clear |
| High penetration display | improve image contrast in bright areas, so the easy penetrating area will be more clear |
| Low penetration display | improve image contrast in dark areas, so the difficult penetrating area will be more clear |
| Magnifier | local amplification function |
| Brighten / darken | Increase/ decrease image brightness |
| Image pull back / front pull | Show the top 20 images, and the current image can be any image processing |
| Image Restoration | Restored to its original state |
| Image Storage | Real-time save any image, any image can be processed arbitrarily ,continuous work to save |
| Environmental conditions | |
| Operating temperature / humidity | 0℃~45℃/20%~95% (No condensation) |
| Storage temperature / humidity | -20℃~60℃/20%~95% (No condensation) |
| Operating Voltage | 90V~250V 50/60Hz |
| Power consumption | 1.0KW(maximum) |
| Noise level | <55dB (A) |
Description
Product features
- Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
- Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
- Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it’ll be quiet. (Optional)
- A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
- Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
- Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
