DVR-104/08/16G-F1
Turbo HD DVR 04/08/16
● Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
● Long distance transmission over UTP and coaxial cable
● One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
● Supports 1080p lite and when enabled, the image effect is similar with 1080p
● Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
● One SATA interface (up to 6 TB capacity per HDD)
● Smart search for efficient playback
- Main Features
- Specifications
- Description
- Additional information
- Reviews (0)
Turbo HD DVR 04/08/16
● Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
● Long distance transmission over UTP and coaxial cable
● One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
● Supports 1080p lite and when enabled, the image effect is similar with 1080p
● Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
● One SATA interface (up to 6 TB capacity per HDD)
● Smart search for efficient playback
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 1-ch |
| Video Compression: | | | H.264,H.264+ |
| Analog Video Input: | | | 8-ch |
| Supported camera types: | | | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
| IP Video Input: | | | 2-ch Up to 960P resolution |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch RCA(2.0Vp-p, 1kΩ) |
| Video/Audio Output | ||
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate: | | | Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps ~ 4 Mbps |
| Stream Type: | | | Video |
| Dual Stream: | | | Support |
| Synchronous Playback: | | | 8-ch |
| Network management | ||
| Remote connections: | | | 32 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | ||
| Interface Type: | | | 1 SATA Interface |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| General | ||
| Power Supply: | | | 12 VDC |
| Consumption: | | | ≤ 12 W |
| Working Temperature: | | | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Working Humidity: | | | 10% to 90% |
| Dimensions: | | | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Weight: | | | ≤ 0.8 kg (1.8 lb) |
Description
Turbo HD DVR 04/08/16
● Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
● Long distance transmission over UTP and coaxial cable
● One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
● Supports 1080p lite and when enabled, the image effect is similar with 1080p
● Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
● One SATA interface (up to 6 TB capacity per HDD)
● Smart search for efficient playback
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
Be the first to review “DVR-104/08/16G-F1”
Related Products
-
You've just added this product to the cart:
Conventional call point DMCL05
Conventional call point DMCL05
Main characteristics
CE certified according to CPD
Conform with the norm EN54-11
Key for reset
Separate key for test
No break glass
Red colour for Alarm status
Yellow colour for extinguishing command
Blue colour for Extinguishing abort -
TD-N064E/TD-N128E
Features
Support 64 / 128 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 / H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback :16 CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS
-
6 ZONE WALK THROUGH GATE UOUOU MODEL: CP200
- Cp-200 is basically having 6 Zones
- Each six zone is divided from head to toe to detect high to low level
- 0-99 sensitivity levels are all working to 0.2mm substance too
- 24 led pair lights for indication of metal in suspected
- low-high two types of alarms
- Working power: 30 W, Working power: (100 v-240 v)+-10%
Standard: GB15210-2003
-
TD-2100TS-CL
Features
4 / 8 / 16 CH TVI / CVI / AHD video input
4 CH DVR support 1080P lite / 720P / WD1 recording
8 / 16 CH DVRs support 1080P lite / 720P / 720P lite / WD1 recording
4 / 8 CH DVRs support 1 / 1 CH IPC 1080P / 960P / 720P recording
16 CH DVRs support 2 CH IPC 3MP / 1080P / 960P / 720P recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion
Playback : 4 / 8 / 16 CH simultaneously playback
Search: time slice, time, event ( manual, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS
-

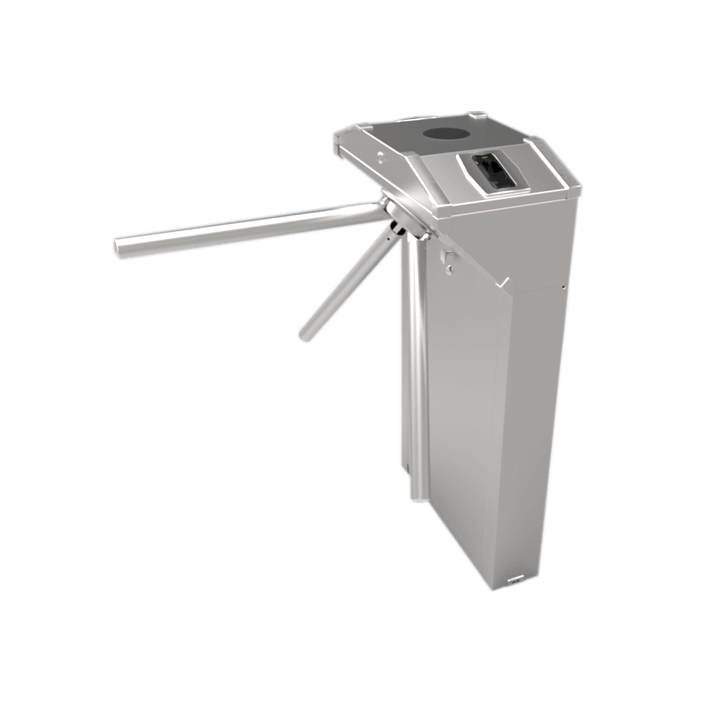

TS1000
