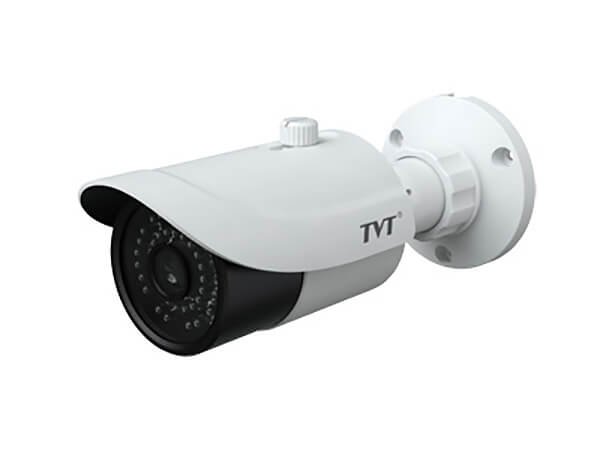

TD-7442AE
Features
4M real time image, high resolution, true color
AHD/TVI/CVI/CVBS standard and lossless high-definition video outputs
Up to 1200 TVL resolution
CMOS progressive scan, perfectly capture the moving object
WDR, Support OSD menu
High speed, long distance, real time transmission
Auto color to B/W at low illumination
Support ICR switch, true day/night
Support noise reduction function
30-40m IR night view distance
IP66 ingress protection
Support COC
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
Features
4M real time image, high resolution, true color
AHD/TVI/CVI/CVBS standard and lossless high-definition video outputs
Up to 1200 TVL resolution
CMOS progressive scan, perfectly capture the moving object
WDR, Support OSD menu
High speed, long distance, real time transmission
Auto color to B/W at low illumination
Support ICR switch, true day/night
Support noise reduction function
30-40m IR night view distance
IP66 ingress protection
Support COC
| Specifications | TD-7442AE(D/IR3) | TD-7442AE(D/FZ/IR3) |
| Image Sensor | 1/3"CMOS | |
| Resolution | 4M | |
| Image Size | 2560x1440 | |
| Video Output | AHD/TVI/CVI/CVBS | |
| Image System | PAL/NTSC | |
| Electronic Shutter | Auto;1/25s ~ 1/100000s(PAL);1/30s ~ 1/100000s(NTSC) | |
| IR Distance | 30-40m | |
| Frame Rate | 30FPS(60Hz)，25FPS(50Hz) | |
| Min. Illumination | 0lux（IR ON） | |
| Lens | 3.6 mm ( 2.8mm,6mm optional ) | 3.3-12mm |
| Lens Mount | M12 | D14 |
| S / N Ratio | ≥52dB（AGC OFF） | |
| Ingress Protection | IP66 | |
| Functions | ||
| Function Control | OSD ( COC Control ) | |
| Day & Night | ICR | |
| Digital WDR | Yes | |
| Digital NR | Yes （3D NR） | |
| AGC | Yes | |
| Auto White Balance | Yes | |
| BLC | Yes | |
| Front Light Compensation | Yes | |
| Sharpness | Yes | |
| Smart IR | Yes | |
| Image Setting | Auto | |
| Defect Correction | Yes | |
| Language | 13Kinds | |
| Angle Adjustment | Any angle | |
| Others | ||
| Power Supply | DC12V（±10%) | |
| Power Consumption | Day : < 65 mA; Night : < 325mA | |
| Working Environment | -20℃ ~ 50℃，10% ~ 90% humidity | |
| Dimensions ( mm ) | Φ87mm×219mm | |
Description
The camera is suitable for the scenes which requires high definition image display such as finance, telecommunications, government, schools, shops, airports, factories and hotels and so on.
Features
4M real time image, high resolution, true color
AHD/TVI/CVI/CVBS standard and lossless high-definition video outputs
Up to 1200 TVL resolution
CMOS progressive scan, perfectly capture the moving object
WDR, Support OSD menu
High speed, long distance, real time transmission
Auto color to B/W at low illumination
Support ICR switch, true day/night
Support noise reduction function
30-40m IR night view distance
IP66 ingress protection
Support COC
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
