TD-9452E2
Features
5MP ( 2592 x 1944 ) H.265 full real time coding
Max. resolution: 2594 x 1944
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC & BLC
ROI coding
Motorized zoom lens optional
Support local CVBS video output and one-way audio
Support PoE power supply
Support smart phone, iPad, remote monitoring
Support P2P
IP66 ingress protection
Support three streams
Support smart analysis, including object removal detection, line crossing detection, intrusion detection, etc.
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
Features
5MP ( 2592 x 1944 ) H.265 full real time coding
Max. resolution: 2594 x 1944
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC & BLC
ROI coding
Motorized zoom lens optional
Support local CVBS video output and one-way audio
Support PoE power supply
Support smart phone, iPad, remote monitoring
Support P2P
IP66 ingress protection
Support three streams
Support smart analysis, including object removal detection, line crossing detection, intrusion detection, etc.
| Specifications | TD-9452E2(D/W/PE/IR2) | TD-9452E2(D/W/PE/FZ/IR2) | TD-9452E2(D/W/PE/AZ/IR2) |
| Camera | |||
| Image Sensor | 1 / 2.5 "CMOS | ||
| Image Size | 2592 x 1944 | ||
| Electronic Shutter | 1 / 25s~ 1 /100000s | ||
| Iris Type | Fixed Iris | ||
| Min. Illumination | 0.03 lux @F1.2,AGC ON; 0 lux with IR | ||
| Lens | 3.6 mm @F1.6, horizontal field of view: 79° |
3.3 ~ 12 mm @F1.4, horizontal field of view:93.9° ~ 34.8° |
3.3 ~ 12 mm @F1.4, horizontal field of view:93.9° ~ 34.8° |
| Lens Mount | M12 | Φ14 optional | Φ14 optional |
| Day & Night | ICR | ||
| Wide Dynamic Range | 120dB | ||
| BLC | Yes | ||
| HLC | Yes | ||
| Digital NR | 2D/3D DNR | ||
| Angle Adjustment | Any angle | ||
| Image | |||
| Video Compression | H.265 / H.264 / MJPEG | ||
| H.265 Compression Standard | Main Profile @Leve4.1 High Tier | ||
| Resolution | 5MP ( 2592x1944 ),4MP( 2560x1440), 1080P( 1920x1080), 720P ( 1280x720 ), D1, CIF, 480x240 | ||
| Main Stream | 60Hz : 5MP( 1 ~ 30fps ) / 4MP( 1 ~ 30fps ) / 1080P( 1 ~ 60fps ) / 720P( 1 ~ 30fps ) 50Hz : 5MP( 1 ~ 25fps ) / 4MP( 1 ~ 25ps ) /1080P( 1 ~ 50fps ) / 720P( 1 ~ 25fps ) | ||
| Bit Rate | 128 Kbps ~ 10 Mbps | ||
| Encode Mode | VBR/CBR | ||
| Quality | Five levels under VBR; Freely adjustable under CBR | ||
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser | ||
| Audio Compression | G711A/U | ||
| ROI | Each ROI to be configured separately | ||
| Interfaces | |||
| Network | RJ45 | ||
| Audio | MIC IN x 1 | ||
| Video Output | CVBS video output ( BNC x 1 ) | ||
| Functions | |||
| Remote Monitoring | IE browsing,CMS remote control | ||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | ||
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | ||
| Interface Protocol | ONVIF, GB-T/28181-2011 | ||
| Storage | Network remote storage | ||
| Smart Alarm | Motion Alarm | ||
| PoE | Yes | ||
| IR Distance | 20 ~ 30 m | ||
| Water-proof | IP66 | ||
| Others | |||
| Power Supply | DC12V /PoE | ||
| Power Consumption | < 8W | ||
| Operating Environment | -20 °C ~ 50 °C,1 0 % ~ 90 % relative humidity | ||
| Dimensions ( mm ) | O 87 x 219 | ||
| Weight ( net ) | 602g | ||
| Installation | Wall mounting, pendent mounting | ||
Description

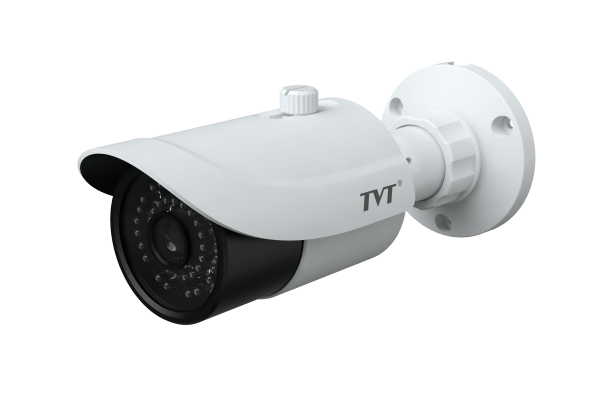

5MP Network IR Water-proof Bullet Camera
Widely used in large-scale high-definition quality monitoring of the places, such as: forests, highways, railways, airports, ports, sentries, squares, parks, scenic spots, streets, stations, large venues, residential and other places.
Features
5MP ( 2592 x 1944 ) H.265 full real time coding
Max. resolution: 2594 x 1944
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC & BLC
ROI coding
Motorized zoom lens optional
Support local CVBS video output and one-way audio
Support PoE power supply
Support smart phone, iPad, remote monitoring
Support P2P
IP66 ingress protection
Support three streams
Support smart analysis, including object removal detection, line crossing detection, intrusion detection, etc.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
