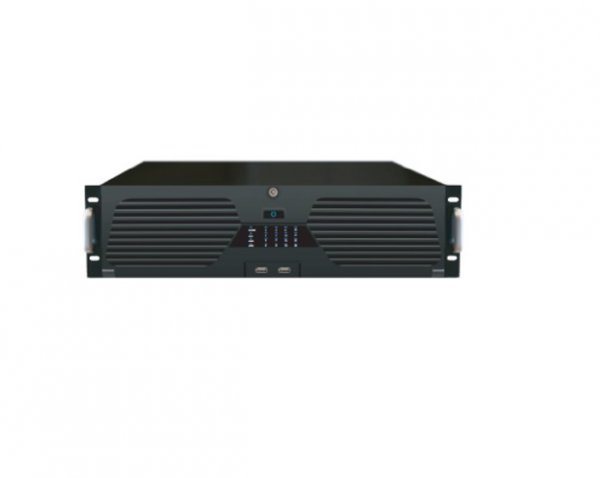

TD-N064E/TD-N128E
Features
Support 64 / 128 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 / H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback :16 CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
Features
Support 64 / 128 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 / H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback :16 CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS
| Model |
TD-N064E
|
TD-N128E
|
|
| System | Compression |
Standard H.265
|
Standard H.265
|
| Main Processing Chip |
ARM Cortex A17
|
ARM Cortex A17
|
|
| OS |
Embedded Linux
|
Embedded Linux
|
|
| Video | Network Access Bandwidth |
320Mbps
|
512Mbps
|
| Input Resolution | 8MP、5MP、4MP、3MP、1080P、960P、720P real time | 8MP、5MP、4MP、3MP、1080P、960P、720P real time | |
| Network Access |
64 CH IPC input
|
128 CH IPC input
|
|
| Output | HDMI×2:oneof3840×2160/1920×1080/1280×1024 theotherof1920×1080/1280×1024 VGA×1:1920×1080/1280×1024 | HDMI×2:oneof3840×2160/1920×1080/1280×1024 theotherof1920×1080/1280×1024 VGA×1:1920×1080/1280×1024 | |
| Audio | Input |
64 CH IPC audio input
|
128 CH IPC audio input
|
| 2-way Audio |
RCA×1
|
RCA×1
|
|
| Local Output |
RCA×1
|
RCA×1
|
|
| Record | Resolution |
8MP、5MP、4MP、3MP、1080P、960P、720P
|
8MP、5MP、4MP、3MP、1080P、960P、720P
|
| Frame Rate |
25fps/30fps(PAL/NTSC）
|
25fps/30fps(PAL/NTSC）
|
|
| Bite Stream |
32Kbps-12Mbps
|
32Kbps-12Mbps
|
|
| Image Quality |
5 Level
|
5 Level
|
|
| Playback | Simultaneous Playback |
Max 16 CH
|
Max 16 CH
|
| Network | Interface |
RJ45 10/100/1000 Mbps × 2
|
RJ45 10/100/1000 Mbps × 2
|
| Network Protocol | TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 | TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 | |
| Storage | HDD |
SATA×16(RAID）,eSATA×1
|
SATA×16(RAID）,eSATA×1
|
| Max Capacity for 1 single HDD |
8T
|
8T
|
|
| Backup | USB Backup |
Yes
|
Yes
|
| eSata Backup |
Yes
|
Yes
|
|
| Interface | Alarm In |
8
|
8
|
| Alarm Output |
4
|
4
|
|
| Communication |
RS485×2, connect to PTZ and keyboard
|
RS485×2, connect to PTZ and keyboard
|
|
| Remote |
No
|
No
|
|
| USB | USB2.0×2( front panel ), USB3.0×1( rear panel ) | USB2.0×2( front panel ), USB3.0×1( rear panel ) | |
| Others | Case |
3U
|
3U
|
| Dimensions(mm ) |
437×483×143(W×D×H)
|
437×483×143(W×D×H)
|
|
| Power Supply |
ATX
|
ATX
|
|
| Consumption |
≤ 30W ( without HDD )
|
≤ 30W ( without HDD )
|
|
| Work Environment |
-10 ～ 50 ℃，10% ～ 90% humidity
|
-10 ～ 50 ℃，10% ～ 90% humidity
|
|
Description
8MP HD NVR
TD-N064E / TD-N128E series are 64 / 128 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P high definition NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. TD-N064E / TD-N128E support 64 / 128
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
