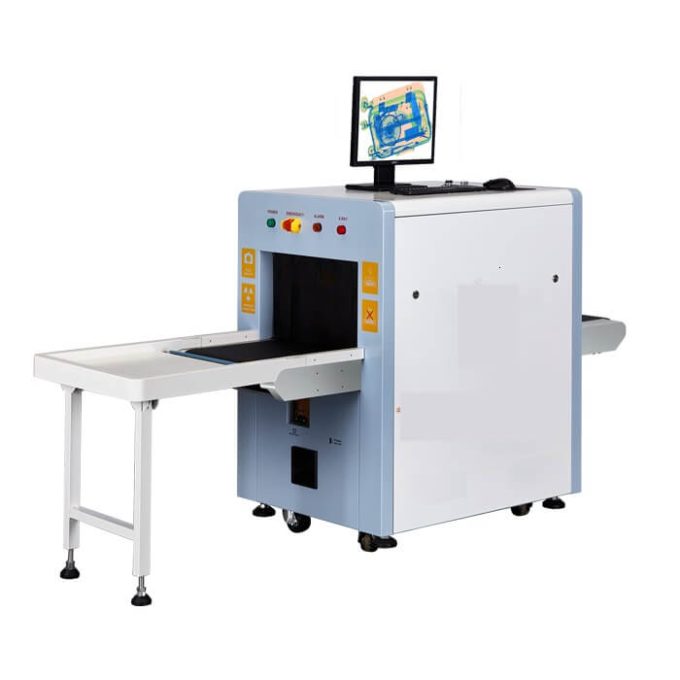

Arsenal 6550 High Performance X Ray Baggage Scanner / Airport X Ray Machine

Tunnel Size: 650 x 500 mm

Conveyor Speed: 0.22 m/s (adjustable)

Load: 200 Kg

Gross Weight: 630 Kg

Power Consumption: 1.0 KW (max)

Noise Level: <55 dB (A)

Penetration: >42 mm steel plate

Tube Current: 0.4-1.2 mA (adjustable)

Ray beam divergence angle: 80 Degrees

X-ray sensor: L-shaped photo diode array detector 12 bit depth

Monitor: High resolution 19 inch LCD Samsung Monitor

Black / White image display: 24-bit true display

Magnifier: Local amplification function

Brightness / Darkness: Increase / decrease image brightness

Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    Product features

    1. Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
    2. Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
    3. Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it’ll be quiet. (Optional)
    4. A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
    5. Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
    6. Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    1. Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
    2. Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
    3. Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it’ll be quiet. (Optional)
    4. A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
    5. Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
    6. Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.

    Specifications

    X-ray Generator

    • Generate direct: Upward
    • Generate anger: 80 degree
    • Anode Voltage: 100~160Kv
    • Anode power: 0.4 to 1.2mA
    • Cooling / Duty Cycle: Oil Cooling /100%

    Image System

    • X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
    • Monitor: High Resolution Color, LCD Accord, 19 inch
    • Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
    • Image Max Resolution: 1024 * 1280 pixel
    • Image Processing: 24bit for processing real time
    • Image storage: Storage 60000 pictures in real time
    • Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
    • Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
    • High-energy/low energy : switch from high energy to low energy
    • Assist to detect drug and explosive powder

    Installation Data

    • Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
    • Storage Temperature/Humidity:  -20℃-60℃/20%-95%(non-condensing)
    • Operation Power: 220VAC(±10%)50±3Hz
    • Power Consumption: 1.0 KW (max), 0.7KW(working)
    • Noise: <58db
