Global Fire Conventional Panel ORION 2-4-8

  • 2, 4 and 8 Zone non-expandable control panels
  • Up to 32 conventional smoke and/or heat detectors per Zone
  • Active End of Line monitoring
  • Programmable non-latching Zones
  • Delay timer programmable on/off per Zone
  • Coincidence programmable for adjacent Zones
  • One man test
  • Supervised auxiliary 24 volt output
  • 2 Supervised/ monitored sounder circuits
  • 3 Remote inputs used for activation of Class Change, Day/Night mode, and Reset
  • 2 Relay outputs fire and fault
  • Fully EN54 part 2 and 4 compliant
  • Repeater output
  • Multiplexed output for LEDs and additional relay outputs per zone (GFE-MPX-REL)
  • Multiplexed output for sounders per zone (GFE-MPX-SNDR)
  • Addressable Loop Interface card (GFE-ADLI)
  • 2 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 2
  • 4 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 4
  • 8 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 8
Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    ORION
    Conventional Fire Detection Panel
    The ORION conventional control panel range offers a creatively designed and visually pleasing solution for
    smaller cost-conscious projects demanding simplicity of operation. Versions available include 2, 4 and 8 zone
    panels and two styles of repeater.
    The outstanding programmable features included in this panel range contradict the facilities commonly available
    in this type of panel and include: programmable time delay by zone, Day/Night mode, selectable non-latching
    zones and coincidence detection.
    Operation is extremely intuitive, offering simple control and one-button disablement facilities, as well as the one
    man test mode which provides simple and efficient testing of the system.
    Advanced configuration solutions include the following: a dedicated RS232 communication interface allowing
    connection of up to 4 remote repeater panels, addressable loop interface modules and multiplexed zonal output
    relays; giving one of the most highly advanced levels of system integration and compatibility existing on the
    market at this level.

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    • 2, 4 and 8 Zone non-expandable control panels
    • Up to 32 conventional smoke and/or heat detectors per Zone
    • Active End of Line monitoring
    • Programmable non-latching Zones
    • Delay timer programmable on/off per Zone
    • Coincidence programmable for adjacent Zones
    • One man test
    • Supervised auxiliary 24 volt output
    • 2 Supervised/ monitored sounder circuits
    • 3 Remote inputs used for activation of Class Change, Day/Night mode, and Reset
    • 2 Relay outputs fire and fault
    • Fully EN54 part 2 and 4 compliant
    • Repeater output
    • Multiplexed output for LEDs and additional relay outputs per zone (GFE-MPX-REL)
    • Multiplexed output for sounders per zone (GFE-MPX-SNDR)
    • Addressable Loop Interface card (GFE-ADLI)
    • 2 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 2
    • 4 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 4
    • 8 ZONES CONVENTIONAL FIRE DETECTION CONTROL PANEL: ORION 8

    Specifications

    TECHNICAL SPECIFICATIONS
    SUPPLY SPECIFICATION DETAILS
    PRIMARY SUPPLY VOLTAGE – IN 230 +10% -15% V AC
    PRIMARY SUPPLY VOLTAGE – OUT 28.5 V DC nominal
    PRIMARY SUPPLY CURRENT – OUT 1.7 A @ 28.5 V DC nominal (max.)
    SECONDARY SUPPLY VOLTAGE 21.0 min. – 27.2 max. V DC – BAT charger o/p 28 V DC
    SECONDARY SUPPLY CURRENT OUTPUT 1.1 Amp Maximum @ 200C
    INTERNAL BATTERY CAPACITY – MAXIMUM 2 x 12V x 7Ah Sealed VRLA Lead Acid Batteries
    MAINS FUSE 4 A -250 V Slow Blow – 20 mm
    BATTERY FUSE 1.6 Amp – Resettable
    DETECTION CIRCUIT SPECIFICATION
    NUMBER OF CIRCUITS 2,4 or 8
    ZONE CURRENT – QUIESCENT / ALARM 4 mA / 60 mA – Maximum
    MAX. CABLE RESISTANCE / CAPACITANCE 40 Ohms / 0.470 uF
    END OF LINE MONITORING Active EOL – 10uF/50V Bipolar Electrolytic Aluminium Capacitor
    BS-5839 DETECTOR REMOVAL COMPLIANT YES provided diodes are fitted to detector base
    DEVICES PER ZONE 32 Maximum – EN54 pt.2
    ALARM RESISTANCE VALUE 270 – 1000 Ohms
    SOUNDER CIRCUIT SPECIFICATION
    CURRENT OUTPUT 2 outputs w/ 500mA max. current drive per circuit – fully monitored
    ALARM VOLTAGE / END OF LINE RESISTOR 27.5 V DC Nominal / 10 K Ohms – 1/4 Watt
    AUXILIARY OUTPUTS SPECIFICATION
    AUXILIARY RELAY OUTPUT 1 Fire (COM
    RELAY CONTACT RATING 50 V DC
    REMOTE INPUT SPECIFICATION
    EVACUATION (CC) – DAY/ NIGHT MODE Non-Latching
    RESET Non-Latching
    MECHANICAL & OPERATING SPEC.
    HUMIDITY Max 95% RH Non-Condensing
    PROTECTION IP30
    OPERATING TEMPERATURE -10ºC to 50ºC
    WEIGHT 1.7 Kg – 7 Kg (inc. 2 x 7 AH 12 V bat.)
    DIMENSIONS 273 (L) x 107 (W) x 404 (H) mm
    COLOUR Red & White

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

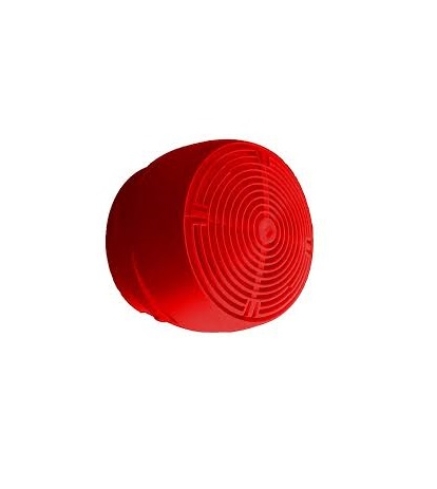

AVSA05-R

Addressable Indoor sounder AVSA05R

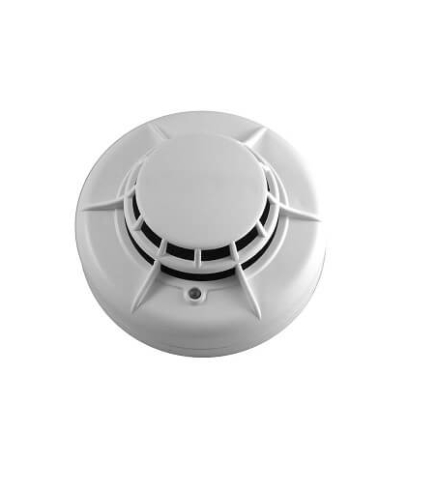

eco1005T Honeywell heat detector
