Honeywell Gent Conventional Smoke Detector : Eco 1003

F E A T U R E S

  • Photo-thermal model
  • Laser-based remote test unit
  • EN 54 Certified (2000 edition)
  • Photoelectric, photo-thermal and thermal detectors
  • Improved chamber design
  • Compatible with fire and security systems
  • -20 to +60ºC operating temperature range
  • Choice of bases (including a 12V relay version)
  • Photoelectric model with integral piezoelectric sounder
    (availability subject to further announcement)
Add to quote
Add to Wishlist
Add to Wishlist
Share
Category
    • Photo-thermal model
    • Laser-based remote test unit
    • EN 54 Certified (2000 edition)
    • Photoelectric, photo-thermal and thermal detectors
    • Improved chamber design
    • Compatible with fire and security systems
    • -20 to +60ºC operating temperature range
    • Choice of bases (including a 12V relay version)
    • Photoelectric model with integral piezoelectric sounder
      (availability subject to further announcement)
    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    F E A T U R E S

    • Photo-thermal model
    • Laser-based remote test unit
    • EN 54 Certified (2000 edition)
    • Photoelectric, photo-thermal and thermal detectors
    • Improved chamber design
    • Compatible with fire and security systems
    • -20 to +60ºC operating temperature range
    • Choice of bases (including a 12V relay version)
    • Photoelectric model with integral piezoelectric sounder
      (availability subject to further announcement)

    Specifications

    Dimensions:                                          42mm (optical) or 50mm (thermal) ø 102mm
    Operating Voltage:                               8 – 30VDC (nominal 12 or 24VDC)
    ECO Bases:                                             ECO1000B Standard base
    ECO1000BSD Standard base with Schottky diode
    Accessories:                                            ECO1000RTU Remote test unit
    Part Numbers:                                        Optical + base ECO 1003 + Base
    Optical ECO 1003
    Optical thermal + base ECO 1002 + Base
    Optical thermal ECO 1002
    Standard base ECO 1000B
    Diode base ECO 1000BSD
    Thermal + base ECO 1005 + Base
    Thermal ECO 1005
    ECO1002 COMBINED PHOTO THERMAL
    Typical Standby Current:                     240μA
    Maximum Alarm Current:                   50mA (limited by control panel)
    Maximum Humidity:                            95% RH
    Operating Temperature:                      -20 to +60ºC
    Weight:                                                     75g
    Approvals:                                               Meets EN54-7:2000; EN54-5:2000 Class A1R; CEA4021
    ECO1003 PHOTO-ELECTRIC DETECTOR
    Typical Standby Current:                     110μA
    Maximum Alarm Current:                   50mA (limited by control panel)
    Maximum Humidity:                            95% RH
    Operating Temperature:                     -20 to +60ºC
    Weight:                                                    75g
    Approvals:                                              Meets EN54-7:2000
    ECO1005 RATE OF RISE THERMAL DETECTOR
    Typical Standby Current:                   125μA
    Maximum Alarm Current:                 50mA (limited by control panel)
    Maximum Humidity:                          95% RH
    Operating Temperature:                   -20 to +60ºC
    Weight:                                                  70g
    Approvals:                                            Meets EN54-5:2000 Class A1R

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

Alpha 2 Fire alarm panel sd3

ALPHA 2 – 2 zones fire detection conventional panel

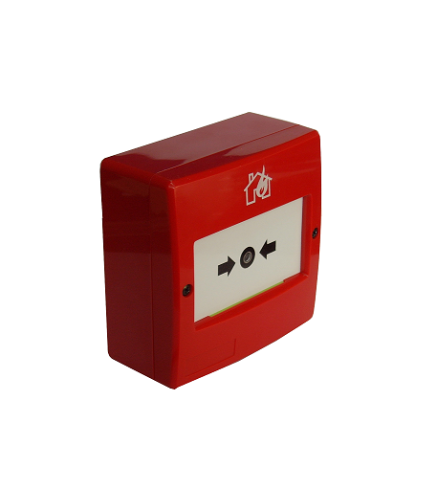

MCP SD3 DMCL05
