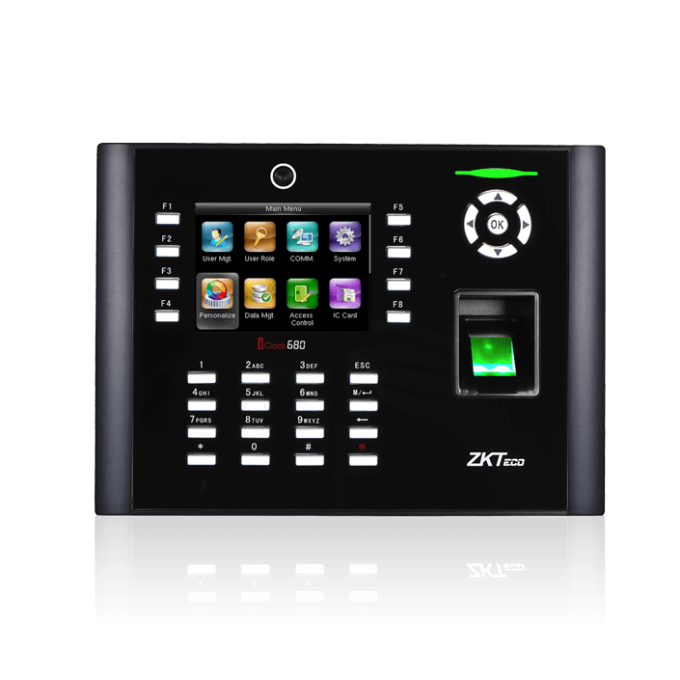

Fingerprint Time & Attendance and Access Control Terminal Model: iClock 680

• Intuitive and stunning UI designed with the most popular and internationalized factor.
• Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
• Faster matching speed: Less than 1 second.

Enhanced Features and Performance

• User validity settings.
• Data backup and retreival.
• Advanced User ID consisted of letters and numbers.

• Chip encryption for firmware protection.
• More flexible menu configuration: double line text display.
• External printer for attendance records output (Optional).
• Optional integrated Wi-Fi\GPRS.
• Relay contacts for alarm, bell, lock, exit, switch, etc.

Excellent Expand-ability
  • Easy to extend functions and customize customers demand.
  • For Wiegand-in, Wiegand-out, door lock connection, alarm, and bell.
Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    Users can easily manage data by networking iClock680 via RS232/485, TCP/IP. Most importantly, all the functions can still operate in a networking state.

    iClock680 is compatible with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion.The iClock680 has access control interfaces for retrieval,Wiegand-out, door lock connection, alarm, and bell.

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    • Intuitive and stunning UI designed with the most popular and internationalized factor.
    • Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
    • Faster matching speed: Less than 1 second.

    Enhanced Features and Performance

    • User validity settings.
    • Data backup and retreival.
    • Advanced User ID consisted of letters and numbers.

    • Chip encryption for firmware protection.
    • More flexible menu configuration: double line text display.
    • External printer for attendance records output (Optional).
    • Optional integrated Wi-FiGPRS.
    • Relay contacts for alarm, bell, lock, exit, switch, etc.

    Excellent Expand-ability
    • Easy to extend functions and customize customers demand.
    • For Wiegand-in, Wiegand-out, door lock connection, alarm, and bell.

    Specifications

    Technical Specifications

    Fingerprint Capacity

    		 8000

    ID Card Capacity

    		 10,000 (Optional)

    Record Capacity

    		 200,000

    Display

    		 3.5-inch Screen

    Communication

    		 TCP/IP, RS232/485, USB (host & Client)

    Standard Functions

    		 Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input,

    and photo-ID , 9 digit user ID

    Optional Functions

    		 ID/Mifare/HID, Webserver and Wi-Fi, 3G and GPRS

    Software

    		 ZKTime.Net

    Power Supply

    		 DC 12V 1.5A

    Verification Speed

    		 ≤ 1 sec

    Operating Temp.

    		 0°C- 45°C

    Operating Humidity

    		 20%-80%

    Dimension

    		 250.6×150×41.6mm (Length×Width×Thickness)

    Gross Weight

    		 1.40 kg
