openAddressable Indoor sounder AVSA05R

HomeProductsFire Alarm SystemAddressable Indoor sounder AVS...

Addressable Indoor sounder AVSA05R

Main characteristics
Addressable independent device
Loop powered
90 dB (+/- 3 dB) at 1 meter
6 tones selectable
Integrated loop isolator
Red or white color
Lateral hearings
Volume control

Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    AVSA.05 is an addressable sounder device build to be connected to a fire detection system (FDS). It is allocated and identified by an address; AVSA.05 is designed to be directly operational from a loop or line of a panel managing the 05 range protocol, it can be monitored and activated individually. Its round shape allows to be used on walls and ceilings. Every device has an integrated loop isolator. The choice of colours (white and red) allows a good sobriety of installation on any surfaces. AVSA.05 works with a piezoelectric cell that warrants a low loop or line consumption current. Its side hearings ensure an excellent sound broadcasting. The addressable sounder AVSA is certified with the standards EN 54-3 and EN 54-17.

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    Main characteristics
    Addressable independent device
    Loop powered
    90 dB (+/- 3 dB) at 1 meter
    6 tones selectable
    Integrated loop isolator
    Red or white color
    Lateral hearings
    Volume control

    Specifications

    Power supply specification
    Main supply voltage:                                     15Vdc to 26Vdc
    Standby consumption                                   600 μA
    Cable Connection:                                         Max 2,5mm²
    Alarm consumption  :                                  0.6mA to 11mA (depending on tones)
    Mechanical characteristics
    Unit weight:                                                    200g
    Unit dimensions (in mm):                          Diam. 109mm Height 84mm
    Unit row material:                                         ABS
    Unit colour:                                                     Red & White
    Protection class:                                             IP21C
    Climatic characteristics
    Operating temperature:                              0°C to 50°C
    Storage temperature:                                   +10°C to +50°C
    Operating relative humidity:                      90%
    Storage relative humidity:                           85%

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

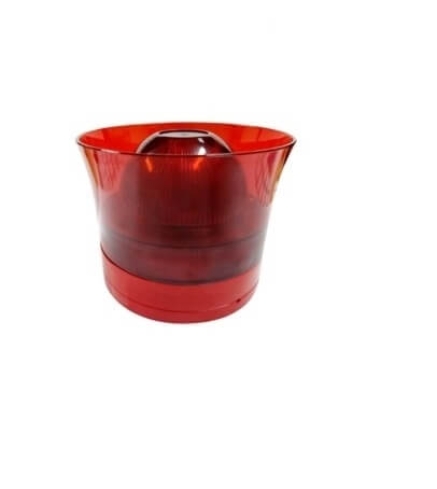

Global Fire Sounder VALKYRIE CS

Conventional Sounder VALKYRIE CS

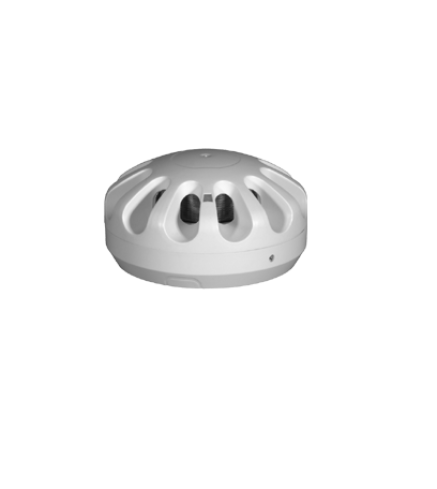

Smoke Detector SD3 OC05
