Conventional heat detectors TS/TR

Main characteristics
Static / Elevation of T°
Lockable
Standard EN54-5
1 remote alarm indicator output
Cable section max 2,5mm²

Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    Both Temperature heat detectors analyze the ambient temperature by the means of thermistor type CTN.
    TSC05 (static heat detector) is either classified A1S or BS according to EN54-5 standard:
     TSC05-A1S: static T°=62°C±3°C
     TSC05-BS: static T°=75°C±5°C
    TRC05 (static + rate of rise detector) is especially adapted for average ambient temperature conditions
    under +10°C. TRC05 is classified A1R according to EN54-5 standard:
     Static T°=62°C±3°C
     ΔT°>9°C/min
    Both types include a developed technology (microprocessors, smd components) which means precision
    and high reliability. A specific head detection fixed by a single ceiling base.
    12V version of TRC05 & TSC05 detectors is also available for security type systems

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    Main characteristics
    Static / Elevation of T°
    Lockable
    Standard EN54-5
    1 remote alarm indicator output
    Cable section max 2,5mm²

    Specifications

    Power supply specification
    Main supply voltage:                                     13V to 27Vdc
    Nominal main supply voltage                     20Vdc
    Quiescent current                                         20-30µA
    Alarm current:                                               32ma
    Mechanical characteristics
    Unit weight:                                                    130g
    Unit dimensions (in mm):                           H:55, D:104
    Unit row material:                                         ABS
    Unit colour:                                                     White
    Protection class:                                             IP32
    Climatic characteristics
    Operating temperature:                               -10°C to +50°C
    Storage temperature:                                   +10°C to +50°C
    Operating relative humidity:                      ≤ 93%
    Storage relative humidity:                           ≤ 85%

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

hephais128 Addressable panel sd3

HEPHAIS 128 2 Loops Addressable Panel
L7000 S

L7000S

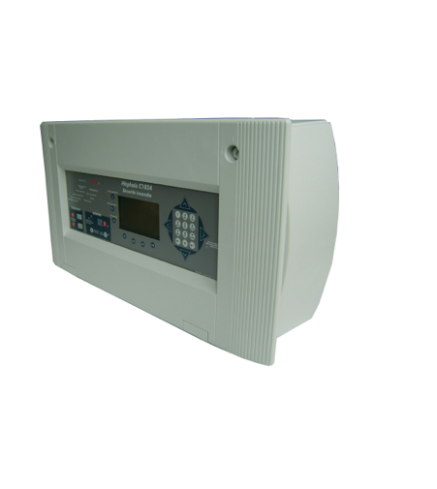

Hephais 1600
