Global Fire Addressable Panel JUNO NET

  • Fully expandable system from 1-96 Loops with distributed intelligence for added security
  • Up to 256 devices per loop (TBA)
  • Up to 96 Loop sounders with 32 individually programmable addresses per Loop
  • Compatible with major analogue addressable communications protocols
  • 2 Fire output changeover relays and 1 Fault output relay (NC)
  • Open collector outputs for Fire, Fault and pre-alarm remote indication
  • 2 fully monitored sounder outputs on main panel and each sub panel
  • Repeaters with optional integrated Sub-Panels (J-NET-REP + Loop Card)
  • Redundant network communication via RS485, TCP/IP & Fiber Optics
  • 384 programmable zones
  • 512 fully programmable sounder and I/O groups
  • Event Log 2000 entries FIFO
  • Backlit LCD display 4 row * 40 characters
  • Multiple programming options, onboard keypad, Remote IR(optional), PS2 Keyboard and GFE Connector software
  • Windows™ based PC Graphics package ODYSSEY for alarm management and reporting(Optional)
  • Multiple Language support (menu selectable)
  • MODBUS (ASCII & RTU) and BMS support
Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    JUNO NET MAIN PANEL

    JUNO NET is a powerful Analogue Addressable Fire Alarm Control System with networking capabilities that facilitate the configuration of complex Wide Area Fire Detection Systems.

    Modular construction and distributed intelligence allow systems of up to 96 Loops to be constructed. With a high level of built-in redundancy and emergency back-up features, the JUNO NET is fully equipped to control the most complex installations.

    Using its wide array of interfacing capabilities the JUNO NET is ideally placed to provide an efficient and effective solution to the logistics of protecting large institutions, Universities, Airports, industrial complexes etc. which may have many individual Fire Alarm systems but require central reporting and control can easily be accommodated by the advanced capabilities of the JUNO NET.

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    • Fully expandable system from 1-96 Loops with distributed intelligence for added security
    • Up to 256 devices per loop (TBA)
    • Up to 96 Loop sounders with 32 individually programmable addresses per Loop
    • Compatible with major analogue addressable communications protocols
    • 2 Fire output changeover relays and 1 Fault output relay (NC)
    • Open collector outputs for Fire, Fault and pre-alarm remote indication
    • 2 fully monitored sounder outputs on main panel and each sub panel
    • Repeaters with optional integrated Sub-Panels (J-NET-REP + Loop Card)
    • Redundant network communication via RS485, TCP/IP & Fiber Optics
    • 384 programmable zones
    • 512 fully programmable sounder and I/O groups
    • Event Log 2000 entries FIFO
    • Backlit LCD display 4 row * 40 characters
    • Multiple programming options, onboard keypad, Remote IR(optional), PS2 Keyboard and GFE Connector software
    • Windows™ based PC Graphics package ODYSSEY for alarm management and reporting(Optional)
    • Multiple Language support (menu selectable)
    • MODBUS (ASCII & RTU) and BMS support

    Specifications

    TECHNICAL SPECIFICATIONS 1 – 4 LOOPS 4 – 13 LOOPS
    LOOPS 1 to 4 loops – Max 275 mA per loop 4 to 13 loops – Max 275 mA per loop
    SOUNDER OUTPUTS 2 at 28 V DC / 500 mA each 4/6/8 24 V DC / 500 mA each
    AUX. RELAYS FIRE 2 rated 50 VAC / DC 1A resistive 2 rated 50 VAC / DC 1A resistive
    AUX. RELAY FAULT 1 rated 50 VAC / DC 1A resistive 1 rated 50 VAC / DC 1A resistive
    AUX SUPPLY OUTPUT 28 V DC; 2×230 mA 28 V DC; 2×230 mA
    ADDITIONAL OUTPUTS Multiplexed up to 384 Zones Multiplexed up to 384 Zones
    PRIMARY SUPPLY 230 +10% -15% V AC 230 +10% -15% V AC
    SECONDARY SUPPLY 28 V DC Nominal 28 V DC Nominal
    POWER SUPPLY RATING 65 W (1-3 Loop) – 150 W (4 Loop) 150 W (4-6 Loop) – 200 W (7-13 Loop)
    QUIESCENT CURRENT (NO DEVICES) 130 mA (1-3 Loop) – 180 mA (4 Loop) 130 mA + 90 mA / sub-panel
    BATTERIES (INTERNAL) 2 x 12 V 12 AH 2 x 12 V 12 AH
    OPERATING TEMPERATURE -10ºC to 50ºC -10ºC to 50ºC
    STORAGE TEMPERATURE -10ºC to 50ºC -10ºC to 50ºC
    HUMIDITY Max 95% no condensation Max 95% no condensation
    PROTECTION IP21 IP21
    DIMENSIONS 375 (L) x 345 (W) x 139 (H) mm 420 (L) x 550 (W) x 127 (H) mm
    WEIGHT 5,1 Kg (no batteries) 8,1 Kg (no batteries)
    COLOUR White or Red White or Red
    ORDER CODE
    J-NET-EN54-SC-001 1 LOOP – PSU 2.4A
    J-NET-EN54-SC-002 2 LOOPS – PSU 2.4A
    J-NET-EN54-SC-003 3 LOOPS – PSU 2.4A
    J-NET-EN54-SC-004 4 LOOPS – PSU 5A

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

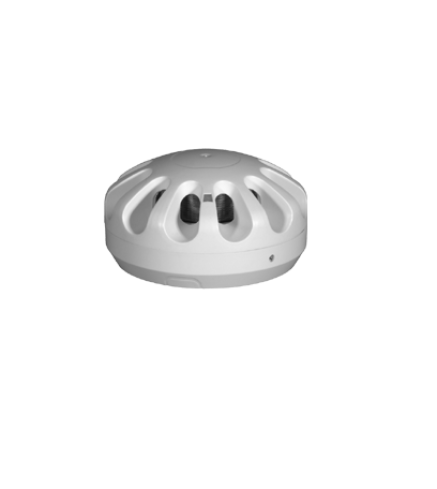

Smoke Detector SD3 OC05
