Conventional Sounder VALKYRIE CS

VALKYRIE CS
Conventional Wall Mount Sounder/ Beacon
The VALKYRIE CS is a wall mounted Conventional Sounder/ Beacon with low power consumption. Four different
tones are available and selected using DIL switches 1 and 2.
Both continuous and pulsing outputs are provided via separate negative supply connections allowing for the
presence of differentiated evacuation and alert sounds.

Add to quote
Add to Wishlist
Add to Wishlist
Share
Category

    VALKYRIE CS
    Conventional Wall Mount Sounder/ Beacon
    The VALKYRIE CS is a wall mounted Conventional Sounder/ Beacon with low power consumption. Four different
    tones are available and selected using DIL switches 1 and 2.
    Both continuous and pulsing outputs are provided via separate negative supply connections allowing for the
    presence of differentiated evacuation and alert sounds.

    Weight 23 kg
    Dimensions 12 × 24 × 35 cm
    Size

    Large, Medium, Small

    Function

    VALKYRIE CS
    Conventional Wall Mount Sounder/ Beacon
    The VALKYRIE CS is a wall mounted Conventional Sounder/ Beacon with low power consumption. Four different
    tones are available and selected using DIL switches 1 and 2.
    Both continuous and pulsing outputs are provided via separate negative supply connections allowing for the
    presence of differentiated evacuation and alert sounds.

    Specifications

    TECHNICAL SPECIFICATIONS
    SUPPLY VOLTAGE 20 V to 30 V DC
    CURRENT – SOUNDER/ BEACON ACTIVE 10 mA – 280 mW @ 28 V DC
    MAXIMUM SOUNDER OUTPUT 97 dB (@ 1 meter – 30 V DC)
    MAX. CABLE SIZE 2.5 mm²
    OPERATING TEMPERATURE -10ºC to 55ºC
    MAX. HUMIDITY 95% RH Non-Condensing
    COLOUR / CASE MATERIAL Red or White / ABS and PC
    PROTECTION CATEGORY IP21C – Type A – Indoor use
    DIMENSIONS 110 (D) x 85 (H) mm inc. base
    WEIGHT 254 g – inc. mounting base

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

Related Products

CWSO-RR-S1 Honeywell Sounder

Honeywell Gent Conventional Sounder CWSO-RR-S1
Smoke Detector SD3 OC05

Conventional heat detectors TS/TR
Smoke Detector SD3 OC05

Addressable smoke detector (SD3) OA05
DMA05

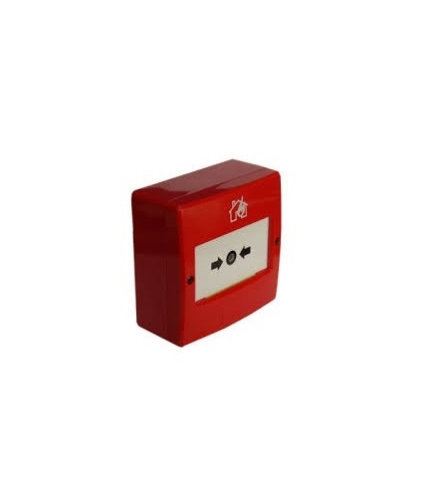

Addressable manual call point DMA05
